How to Build WatermelonDB Sync Backend in Elixir

How to Build WatermelonDB Sync Backend in Elixir

categories: Phoenix, Elixir
tags: WatermelonDB, Sync Backend

WatermelonDB

WatermelonDB is a reactive database for React frontend application that supports data synchronization.

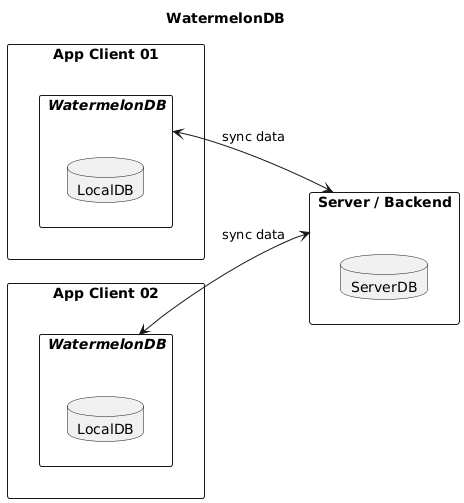

WatermelonDB

What I like about this database is you can bring your own sync backend (HTTP-based) as long as it complies with this spec:

Operation Request Params / Body Response Body
Pull - lastPulledAt: integer, Unix time in milliseconds (ms) - changes: (JSON)
- timestamp: integer, Unix time in milliseconds (ms)
Push - changes: (JSON)
- lastPulledAt: integer, Unix time in milliseconds (ms)
X

The following is a brief how pull and push operation works. Please refer to Sync documentation for the details

Pull Operation

Request:

  • lastPulledAt is a timestamp retrieved in the last/previous pull operation

Response:

  • changes is a JSON containing changes of data (created, updated, deleted) since lastPulledAt at server
  • timestamp is a timestamp that will replace lastPulledAt for the next pull operation.

Push Operation

Request:

  • changes is a JSON containing data changes on the client (local) that will be applied by server on server DB.
  • lastPulledAt is a timestamp retrieved in the last/previous pull operation. This is for conflict detection. Server compare modification time of each row of changes on server DB with lastPulledAt. If it is greater, there is a conflict.

Response:

  • No specified response

changes Example

{
    "posts": {
        "created": [
            {
                "id": "d1633195-156f-4f9d-9ccf-7740203b080e",
                "_status": "created",
                "_changed": "",
                "title": "Phoenix",
                "content": "Phoenix is a web framework for Elixir",
                "likes": 200,
                "created_at": 1588400731806,
                "updated_at": 1588400731806
            }
        ],
        "updated": [
            {
                "id": "2d7c6a82-eb04-47b1-be52-6f8f6cf806ff",
                "_status": "updated",
                "_changed": "updated_at,title,content,likes",
                "title": "Elixir",
                "content": "Elixir is amazing",
                "likes": 100,
                "created_at": 1588389279195,
                "updated_at": 1588400691047
            }
        ],
        "deleted": [
            "2b130e52-079d-4b31-9f42-ce257cf546f0"
        ]
    },
    "comments": {
        "created": [],
        "updated": [
            {
                "id": "1e945c88-baf2-4db7-aa39-286b6865b3fb",
                "comment": "That's good!"
            }
        ],
        "deleted": []
    }
}
  • created and updated is an array of object containing created / updated records
  • deleted is an array of string of deleted IDs

Sync Flow

Based on the documentation and sync code example (synchronize()) on client side, this is what will be expected from sync backend:

WatermelonDB Sync Flow

Proposed Alternative Sync Approach

While in iterations of prototyping sync backend, I took another approach for tracking changes and made a workaround for an issue in regard to WatermelonDB sync behaviour on client side.

Using Auto-incrementing Counter (Version) + Timestamp for Tracking Changes

WatermelonDB sync documentation is good enough to gives a tips for implementing sync backend by using timestamp. It also states:

This protects against weird edge cases related to server clock time changes (NTP time sync, leap seconds, etc.) (Alternatively, instead of using timestamps, you could use auto-incrementing couters, but you’d have to ensure they are consistent across the whole database, not just one table)

I followed its suggestion to use auto-incrementing counter. In my approach, for tracking changes, it needs these server DB setup: a global sequence (version_seq) & each table have columns: version (int), version_created (int), created_at_server (timestamp), updated_at_server (timestamp), and deleted_at_server (timestamp).

Please see Database Design to know how this is implemented in practice.

Workaround for Sync on Client Side

There is a problem if we use sync code example (synchronize()) for client side on the documentation.

Please look again at Sync Flow diagram above.

In 8, after WatermelonDB receives changes & timestamp, internally, timestamp value is set as lastPulledAt for the next pull operation. That is not problem.

At first, I assume it will have same mechanism for push operation. We got new timestamp that will be become the next lastPulledAt. But I am wrong. Look at 15. No response at all for push operation AND no way to explicitly set lastPulledAt on the push operation. It means for the next pull operation, we will get changes that we’ve just pushed on previous push operation. Well, it actually mentioned in the documentation:

Current limitations

  1. During next sync pull, changes we’ve just pushed will be pulled again, which is unnecessary. It would be better if server, during push, also pulled local changes since lastPulledAt and responded with NEW timestamp to be treated as lastPulledAt.

I don’t know why this library designed to behave like this. It raised an issue complaining/questioning about that.

Sync Flow Workaround

So this is what I did for a temporary solution/workaround:

WatermelonDB Sync Flow Workaround

  • introduce variable latestVersionOfSession & changesOfSession (1)
  • call synchronize() twice (2 & 20)
  • on first synchronize(), pull & push operation retrieve latestVersion & changes (8 & 19) then set it as latestVersionOfSession & changesOfSession value
  • on second synchronize(), pull operation only set lastPulledAt = latestVersionOfSession & changes = changesOfSession to be applied on LocalDB (22). Push operation does nothing.

This is workaround for the client side. The code is available on the next post.

Application Example: BlogApp

Let’s say we want to build a blog app (web based) that supports data synchronization. User can submit, edit, and delete a post content. If user click Sync button, data located on current browser will be synced to server. So if user open another browser (another client device), data will be automically synced and available on that browser.

This tutorial only covers how to build sync backend implementation. Frontend (ReactJS) implementation is available on the next post: Building an Offline First React Web App Using WatermelonDB in Phoenix (Elixir).

Database Design

LocalDB ServerDB
WatermelonDB
posts table
PostgreSQL
posts table
Column Type Column Type Default
id string (UUID format) id uuid (binary) -
title string title varchar -
content string content varchar -
likes number likes integer -
created_at number
(UNIX timestamp in ms)
created_at timestamp (in μs) -
updated_at number
(UNIX timestamp in ms)
updated_at timestamp (in μs) -
- - created_at_server timestamp (in μs) -
- - updated_at_server timestamp (in μs) -
- - deleted_at_server timestamp (in μs) -
- - version bigint nextval('version_seq')
- - version_created bigint nextval('version_seq')

Determining Data Changes

For push operation:

  • when a new data is created:
    • version = nextval('version_seq')
    • version_created = nextval('version_seq')
    • created_at_server = current time
    • updated_at_server = current time
  • when a data is updated:
    • version = nextval('version_seq')
    • updated_at_server = current time
  • when a data is deleted:
    • version = nextval('version_seq')
    • deleted_at_server = current time

For pull operation:

  • retrieve all data that were changed since lastPulledVersion:

    SELECT * FROM posts WHERE version_created > <lastPulledVersion> OR version > <lastPulledVersion>

  • Then categorize which records were created, updated, or deleted :

    • created

      version_created > <lastPulledVersion> AND deleted_at_server IS NULL

    • updated

      created_at_server != updated_at_server AND deleted_at_server IS NULL

    • deleted

      deleted_at_server IS NOT NULL

Sync Backend Implementation

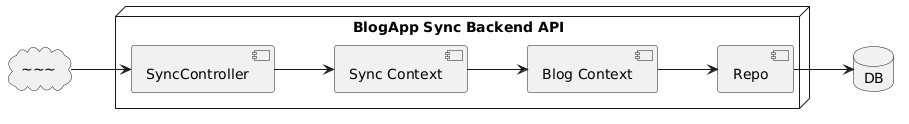

Sync Backend consists of four main components: SyncController, Sync context, Blog context, and Repo. If you come from another framework, context is kind of like service.

BlogApp Architecture

We will build sync backend using Elixir 1.10 and Phoenix 1.5.1

Install Phoenix 1.5.1:

$ mix archive.uninstall phx_new
$ mix archive.install hex phx_new 1.5.1

Generate a new Phoenix web app:

$ mix phx.new blog_app

We will use PostgreSQL on Docker with password and database name specified on config/dev.exs:

$ docker run --name blog-db -e POSTGRES_PASSWORD=postgres -e POSTGRES_DB=blog_app_dev -d -p 5432:5432 postgres:12.2

Create the database:

$ cd blog_app
$ mix ecto.create

Create version_seq sequence that will generate version for each data changes :

$ mix ecto.gen.migration create_version_seq
# priv/repo/migrations/xxx_create_version_seq.exs
defmodule BlogApp.Repo.Migrations.CreateVersionSeq do
  use Ecto.Migration

  def change do
    execute "CREATE SEQUENCE version_seq"
  end
end
$ mix ecto.migrate

Generate Post schema:

$ mix phx.gen.schema Blog.Post posts title:string content:string likes:integer push_id:integer created_at:utc_datetime_usec updated_at:utc_datetime_usec created_at_server:utc_datetime_usec updated_at_server:utc_datetime_usec deleted_at_server:utc_datetime_usec version:integer version_created:integer --binary-id

Set default value of version* columns with a incremental number generated by version_seq. As it may increase overtime, change version* columns type to bigint to support bigger value. We don’t need inserted_at and updated_at columns generated by Phoenix so we omit timestamps(). Edit xxx_create_posts.exs:

# priv/repo/migrations/xxx_create_posts.exs
defmodule BlogApp.Repo.Migrations.CreatePosts do
  use Ecto.Migration

  def change do
    create table(:posts, primary_key: false) do
      add :id, :binary_id, primary_key: true
      add :title, :string
      add :content, :string
      add :likes, :integer
      add :created_at, :utc_datetime_usec
      add :updated_at, :utc_datetime_usec
      add :created_at_server, :utc_datetime_usec
      add :updated_at_server, :utc_datetime_usec
      add :deleted_at_server, :utc_datetime_usec
      add :push_id, :integer
-     add :version, :integer
+     add :version, :bigint, default: fragment("nextval('version_seq')")
-     add :version_created, :integer
+     add :version_created, :bigint, default: fragment("nextval('version_seq')")

-     timestamps()
    end
  end
end

To enable JSON encoding for Post schema, annotate it with @derive Jason.Encoder for certain columns only:

# lib/blog_app/blog/post.ex
defmodule BlogApp.Blog.Post do
  use Ecto.Schema
  import Ecto.Changeset

  @primary_key {:id, :binary_id, autogenerate: true}
  @foreign_key_type :binary_id
+ @derive {Jason.Encoder, only: [:id, :title, :content, :likes]}
  schema "posts" do
    field :title, :string
    field :content, :string
    field :likes, :integer
    field :created_at, :utc_datetime_usec
    field :updated_at, :utc_datetime_usec
    field :created_at_server, :utc_datetime_usec
    field :updated_at_server, :utc_datetime_usec
    field :deleted_at_server, :utc_datetime_usec
    field :push_id, :integer
    field :version, :integer
    field :version_created, :integer

-   timestamps()
  end
  # ...
end
$ mix ecto.migrate

Sync Endpoint

Sync endpoint will be handled by:

  • push: POST /api/sync/push?lastPulledVersion=<lastPulledVersion>
  • pull: GET /api/sync/pull?lastPulledVersion=<lastPulledVersion>

Edit lib/blog_app_web/router.ex

# lib/blog_app_web/router.ex
defmodule BlogAppWeb.Router do
    # ...
    scope "/api", BlogAppWeb do
      pipe_through :api

      post "/sync/push", SyncController, :push
      get "/sync/pull", SyncController, :pull
    end
    # ...
end

Controller

Create lib/blog_app_web/controllers/sync_controller.ex

# lib/blog_app_web/controllers/sync_controller.ex
defmodule BlogAppWeb.SyncController do
  use BlogAppWeb, :controller
  alias BlogApp.Sync

  def push(
        %Plug.Conn{
          body_params: req_body,
          query_params: %{"lastPulledVersion" => last_pulled_version}
        } = conn,
        _params
      ) do

    resp =  Sync.push(req_body, String.to_integer(last_pulled_version))
    json(conn, resp)
  end

  def pull(
        %Plug.Conn{
          query_params: %{"lastPulledVersion" => last_pulled_version}
        } = conn,
        _params
      ) do

    resp = Sync.pull(String.to_integer(last_pulled_version))
    json(conn, resp)
  end
end

Push

Changes have to be recorded in a DB transaction. If there is a failed data operation, every operation must be rolled back.

In a push operation, data that will be recorded are also annotated with a push_id. Later on, after push operation has been successfully applied, all changes since last_pulled_version are retrieved to become push response except those have already been applied (filtered with push_id).

BlogApp.Sync.push/2:

# lib/blog_app/sync.ex
defmodule BlogApp.Sync do
  alias BlogApp.{Repo, Blog}

  def push(changes, last_pulled_version) do
    push_id = Enum.random(1..1_000_000_000)

    Ecto.Multi.new()
    |> Blog.record_posts(changes["posts"], last_pulled_version, push_id)
    |> Repo.transaction()

    pull(last_pulled_version, push_id)
  end
  # ...
end

BlogApp.Blog.record_posts/4:

# lib/blog_app/blog.ex
defmodule BlogApp.Blog do
  import Ecto.Query
  alias Ecto.Multi
  alias BlogApp.Repo
  alias BlogApp.Blog.Post

  def record_posts(%Multi{} = multi, post_changes, last_pulled_version, push_id) do
    multi
    |> Multi.run(:check_conflict_posts, fn _, _changes ->
      case check_conflict_version_posts(post_changes, last_pulled_version) do
        :no_conflict -> {:ok, :no_conflict}
        :conflict -> {:error, :conflict}
      end
    end)
    |> record_created_posts(post_changes["created"] |> set_push_id(push_id))
    |> record_updated_posts(post_changes["updated"] |> set_push_id(push_id))
    |> record_deleted_posts(post_changes["deleted"], push_id)
  end
  # ...
  defp set_push_id(posts, push_id) do
    posts
    |> Enum.map(fn post -> post |> Map.put("push_id", push_id) end)
  end
  # ...
end

Conflict Detection

Conflict happens when other users/clients have modified data that we’re pushing.

Blog.check_conflict_version_posts/2 :

# lib/blog_app/blog.ex
defmodule BlogApp.Blog do
  # ...
  def check_conflict_version_posts(post_changes, last_pulled_version) do
    ids =
      Enum.concat(post_changes["created"], post_changes["updated"])
      |> Enum.map(fn post -> post["id"] end)
      |> Enum.concat(post_changes["deleted"])

    count =
      Post
      |> select([p], count(p.version))
      |> where([p], p.id in ^ids)
      |> where([p], p.version > ^last_pulled_version or p.version_created > ^last_pulled_version)
      |> Repo.one()

    case count do
      0 -> :no_conflict
      _ -> :conflict
    end
  end
  # ...
end

Storing Record Changes

Data changes are saved on database in bulk using INSERT INTO CONFLICT on PostgreSQL. This is also known as UPSERT (update or insert).

Blog.upsert_posts/3 handle both create & update case. Blog.record_created_posts/2 & Blog.record_updated_posts/2 :

# lib/blog_app/blog.ex
defmodule BlogApp.Blog do
  # ...
  def record_created_posts(%Multi{} = multi, created_changes),
    do: upsert_posts(multi, :create_posts, created_changes)

  def record_updated_posts(%Multi{} = multi, updated_changes),
    do: upsert_posts(multi, :update_posts, updated_changes)

  def upsert_posts(%Multi{} = multi, _name, changes) when is_nil(changes),
    do: multi

  def upsert_posts(%Multi{} = multi, name, changes) do
    now = DateTime.utc_now()

    posts =
      changes
      |> Enum.map(fn row ->
        row
        |> Map.put("created_at", row["created_at"] * 1000 |> DateTime.from_unix!(:microsecond))
        |> Map.put("updated_at", row["updated_at"] * 1000 |> DateTime.from_unix!(:microsecond))
        |> Map.put("created_at_server", now)
        |> Map.put("updated_at_server", now)
        |> Map.take(["id", "title", "content", "likes", "created_at", "updated_at", "created_at_server", "updated_at_server", "push_id"])
        |> key_to_atom()
      end)

    Multi.insert_all(multi, name, Post, posts,
      conflict_target: :id,
      on_conflict: {:replace_all_except, [:id, :version_created, :created_at_server, :deleted_at_server]},
      returning: true
    )
  end

  def key_to_atom(map) do
    Enum.reduce(map, %{}, fn
      {key, value}, acc when is_atom(key) -> Map.put(acc, key, value)
      {key, value}, acc when is_binary(key) -> Map.put(acc, String.to_existing_atom(key), value)
    end)
  end
  # ...
end

Blog.record_deleted_posts/3 :

# lib/blog_app/blog.ex
defmodule BlogApp.Blog do
  # ...
  def record_deleted_posts(%Multi{} = multi, deleted_ids, _push_id) when is_nil(deleted_ids),
    do: multi

  def record_deleted_posts(%Multi{} = multi, deleted_ids, push_id) do
    now = DateTime.utc_now()

    posts =
      deleted_ids
      |> Enum.map(fn id ->
        %{id: id, deleted_at_server: now, push_id: push_id}
      end)

    Multi.insert_all(multi, :delete_posts, Post, posts,
      conflict_target: :id,
      on_conflict: {:replace, [:deleted_at_server, :version, :push_id]},
      returning: true
    )
  end
  # ...
end

Pull

Pull endpoint calls Sync.pull without push_id specified. It means all data changes since last_pulled_version become the response of pull operation.

# lib/blog_app/sync.ex
defmodule BlogApp.Sync do
  # ...
  def pull(last_pulled_version, push_id \\ nil) do
    %{latest_version: latest_version_posts, changes: posts_changes} =
      Blog.list_posts_changes(last_pulled_version, push_id)

    latest_version =
      [last_pulled_version, latest_version_posts]
      |> Enum.max()

    %{
      "latestVersion" => latest_version,
      "changes" => %{
        "posts" => posts_changes
      }
    }
  end
end

Blog.list_posts_changes/2:

# lib/blog_app/blog.ex
defmodule BlogApp.Blog do
  # ...
  def list_posts_changes(last_pulled_version, push_id) do
    posts_latest =
      Post
      |> where([p], p.version_created > ^last_pulled_version or p.version > ^last_pulled_version)
      |> Repo.all()

    posts_changes =
      posts_latest
      |> Enum.reject(fn post -> is_just_pushed(post, push_id) end)
      |> Enum.group_by(fn post ->
        cond do
          post.version_created > last_pulled_version and is_nil(post.deleted_at_server) -> :created
          post.created_at_server != post.updated_at_server and is_nil(post.deleted_at_server) -> :updated
          not is_nil(post.deleted_at_server) -> :deleted
        end
      end)
      |> Map.update(:created, [], fn posts -> posts end)
      |> Map.update(:updated, [], fn posts -> posts end)
      |> Map.update(:deleted, [], fn posts -> posts |> Enum.map(fn post -> post.id end) end)

    latest_version = find_latest_version(posts_latest)

    %{latest_version: latest_version, changes: posts_changes}
  end

  defp find_latest_version(posts) do
    posts
    |> Enum.flat_map(fn post -> [post.version, post.version_created] end)
    |> Enum.max(fn -> 0 end)
  end
  # ...
  defp is_just_pushed(_post, push_id) when is_nil(push_id), do: false
  defp is_just_pushed(post, push_id), do: post.push_id == push_id
end

Run the Backend

$ mix phx.server

Sync endpoint will be available on

  • push: POST http://localhost:4000/api/sync/push?lastPulledVersion=<lastPulledVersion>
  • pull: GET http://localhost:4000/api/sync/pull?lastPulledVersion=<lastPulledVersion>

What’s Next ?

We have build a sync backend for WatermelonDB frontend application. On the next post, we will continue to code the frontend application with sync capability: Building an Offline First React Web App Using WatermelonDB in Phoenix (Elixir)
